Description

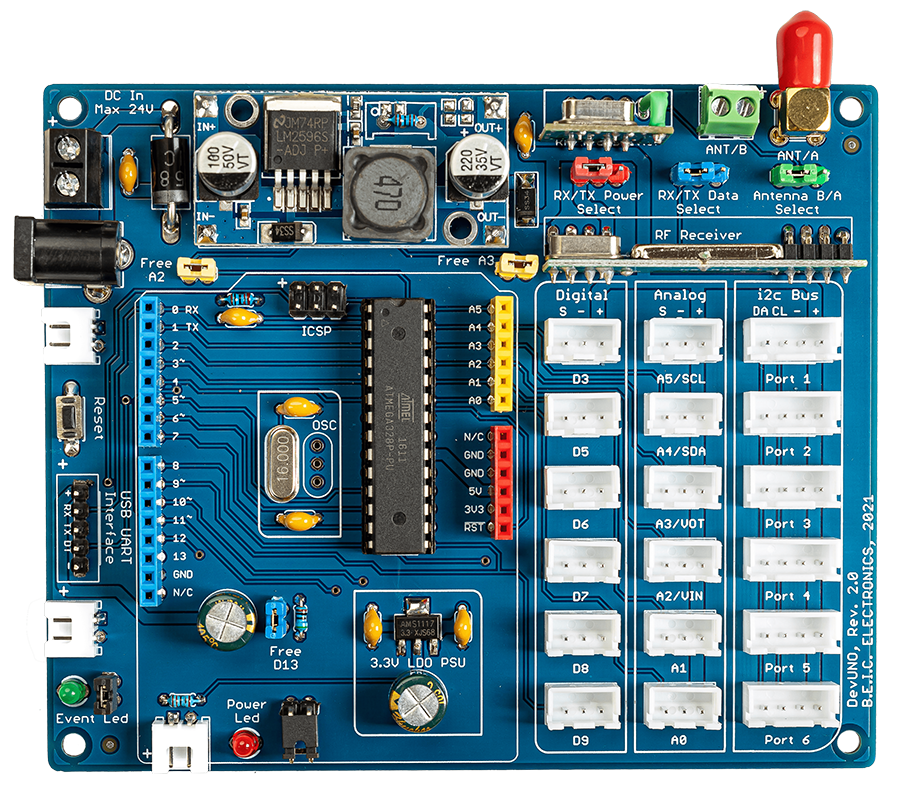

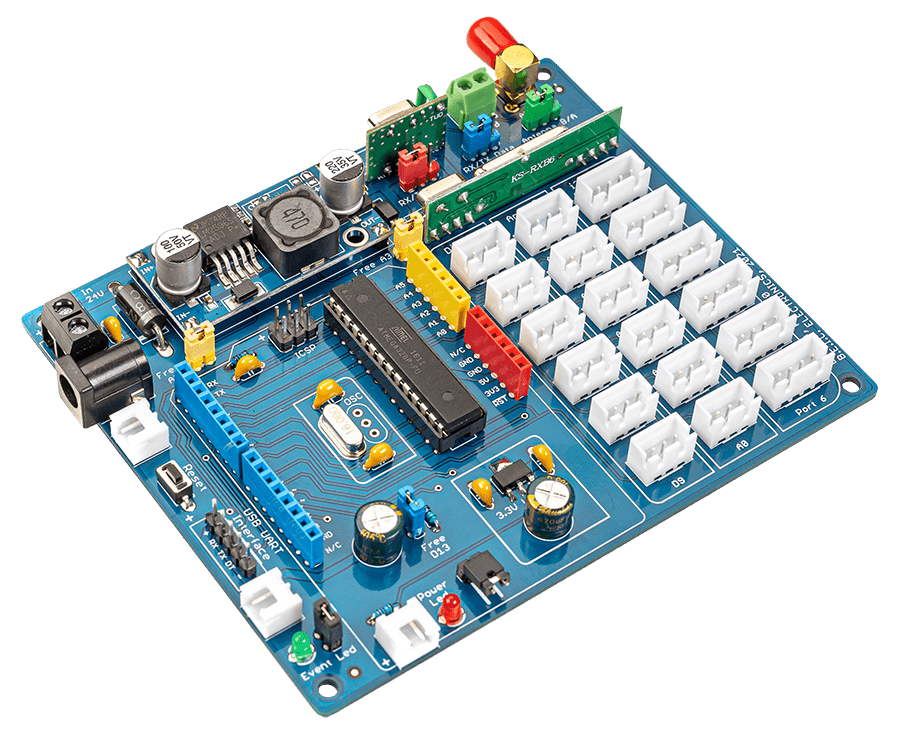

DevUNO is a multipurpose Arduino development board that allows you to quickly and easily test all your existing modules, sensors, and components without having to struggle with breadboards and "cobwebs". It can be immediately deployed in real-time/world.

DevUNO covers a wide area of use, namely: industry, agriculture, animal husbandry, scientific research, and educational projects. It is also a great gadget for hobbyists.

Specifications

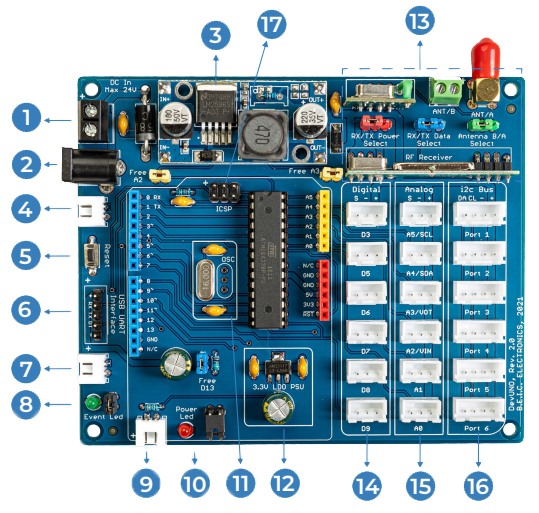

  1. 1

    DC Power - Terminal Connector

  2. 2

    DC Power - DC Jack

  3. 3

    DC 5V/2A Power Supply

  4. 4

    External Reset

  5. 5

    Internal (On-board) Reset

  6. 6

    USB UART Interface Connector (+, RX, TX, DT, -)

  7. 7

    External Event LED (Build in LED)

  8. 8

    Internal Event LED (Build in LED, Can be disabled by the Jumper)

  9. 9

    External Power LED

  10. 10

    Internal Power LED (Can be disabled by the Jumper)

  1. 11

    Clock/Frequency Selector

  2. 12

    Internal 3.3V/800mA LDO Voltage Regulator

  3. 13

    Integrated RF 433MHz (315MHz) OOK/ASK Receiver / Transmitter with SMA and Terminal Connector attached Antena (Optional)

  4. 14

    6x Digital Pin Extension: D3, D5, D6, D7, D8, D9

  5. 15

    6x Analog Pin Extension: A5, A4, A3, A2, A1, A0

  6. 16

    6x I2C Pin Extension (In this case you can't use Analog Pins A5 and A4)

  7. 17

    ISP (ICSP) Header

Technical Specifications

  • ATmega328P 8-bit AVR Microcontroller
  • 32 KB Flash Memory, 2 KB SRAM, 1 KB EEPROM
  • 16 MHz Clock Speed
  • 14 Digital I/O Pins (6 PWM outputs)
  • 6 Analog Inputs
  • Extended Digital Ports: D3, D5, D6, D7, D8, D9 (6 ports)
  • Extended Analog Ports: A5, A4, A3, A2, A1, A0 (6 ports)
  • Extended I2C Ports: 6x ports via A4 and A5 (6 ports)
  • Integrated 5V/2A DC Power Supply
  • Integrated Voltage Divider on A2/VIN and A3/VOT for Power Supply Measurements
  • Integrated RF 433MHz (315MHz) OOK/ASK Wireless Module - Receiver / Transmitter (optional)
  • Standard 2.54mm / JST-XH Headers with access to I/Os, SPI, UART, ADC, ISP (ICSP), and Power pins
  • Arduino UNO Shield Compatible
  • Input voltage: 9-24V DC (max. 30V DC)
  • Operating voltage: 5V DC (has an integrated 3.3V/800mA LDO Voltage Regulator)
  • Dimensions: 117mm x 96mm
  • Weight: 121g (with Transparent Plexiglas base)
  • Operating temperature: -40 – 85 °C

Extended Specifications

It offers you the possibility to choose the Clock source of the Microcontroller, i.e., to use a Crystal, a Resonator, or the Internal Oscillator of the Microcontroller itself (in that case, all you need to do is to disable the External Clock source by shorting out the jumper pads on the board’s backside).

Microcontroller Compatibility

Can be used with any of the following AVR Microcontrollers:

  • ATtiny48
  • ATtiny88
  • ATmega8 (Arduino NG – 8s delay by Bootloader)
  • ATmega48
  • ATmega88
  • ATmega168
  • ATmega328 (Arduino UNO)

Setup Instruction

To setup the Microcontroller follow the steps:

  1. Download and install Arduino IDE for Programming, Debugging, Compiling, and Uploading.
  2. Connect your favorite USB 2.0 to TTL UART 5-pin Adapter (CP2102, CP2104, FT232RL) to connect DevUNO’s UART port with your computer using Arduino IDE.
  3. Start Arduino IDE, open or write your desired code.
  • Click Tools -> Board -> and select Arduino/Genuino UNO.
  • Click Tools -> Port -> and select the COM port as detected by the computer in the device manager.
  • Click Verify to compile the code.
  • Click Upload to burn the code / ".hex" file into microcontroller.

Accessories

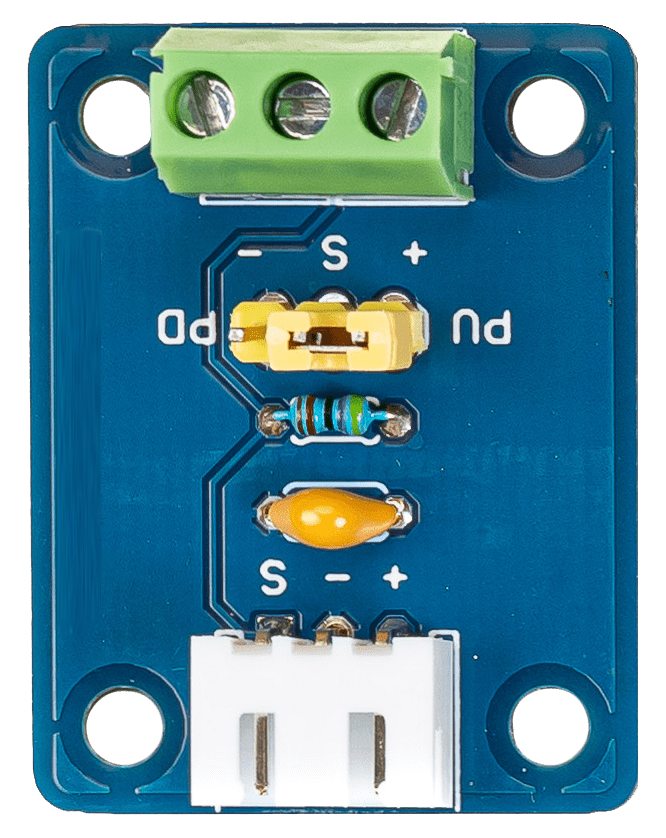

Digital/Analog Extension Board
with Pull-Up/Down

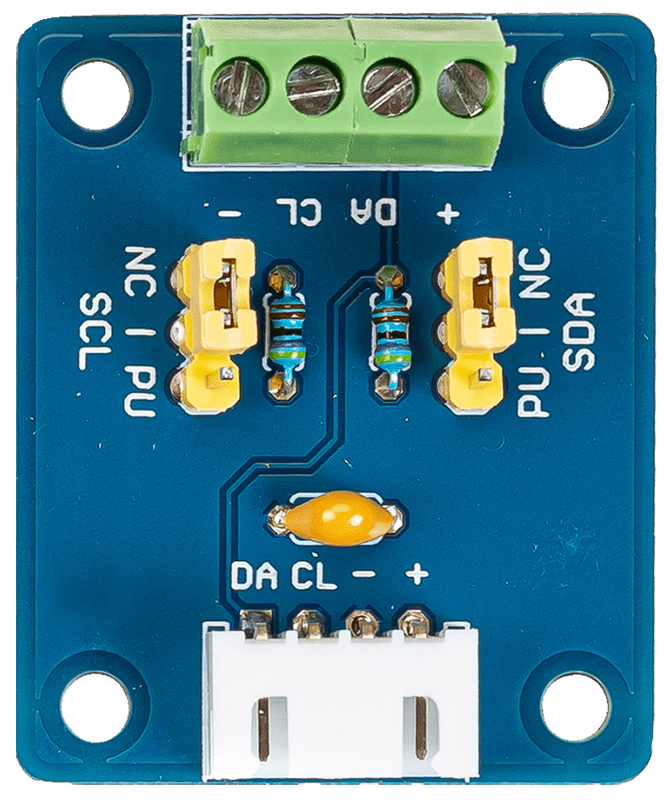

1

I2C Extension Board
with Pull-Up/Down

2

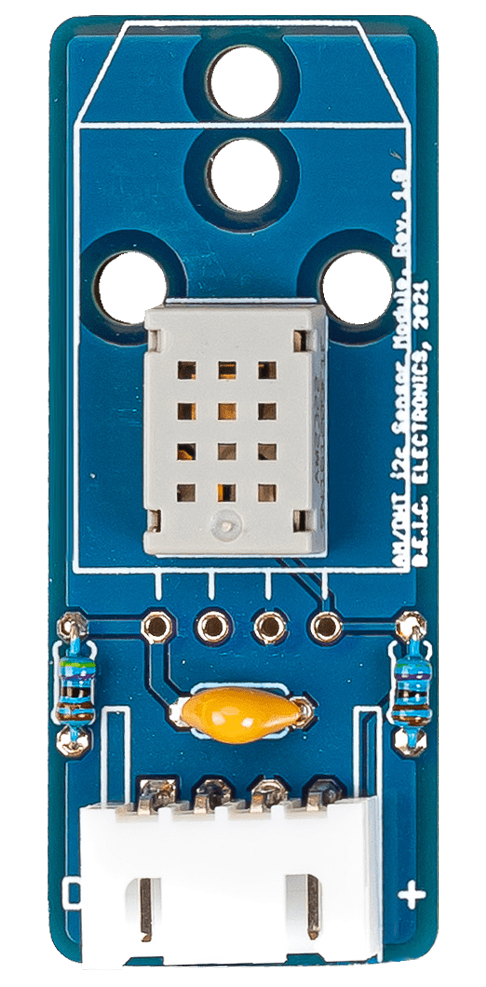

I2C Sensor Extension Board

3

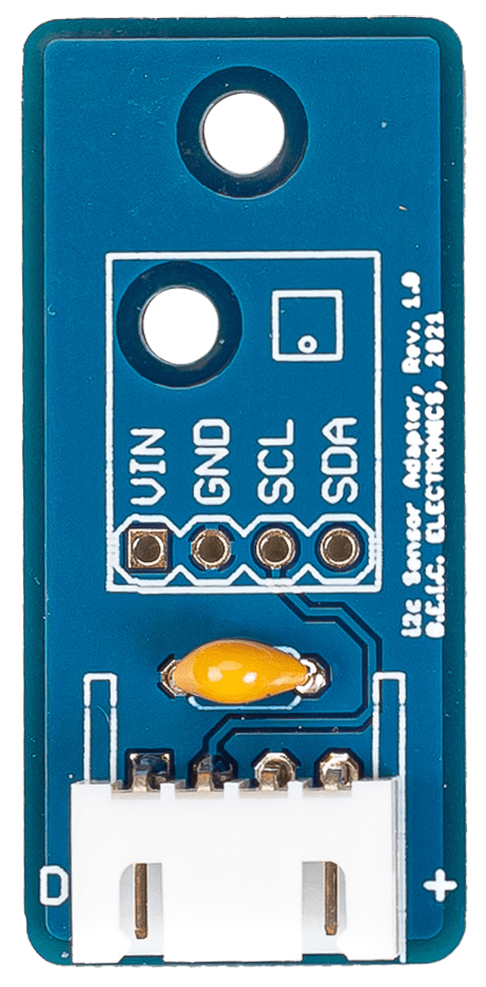

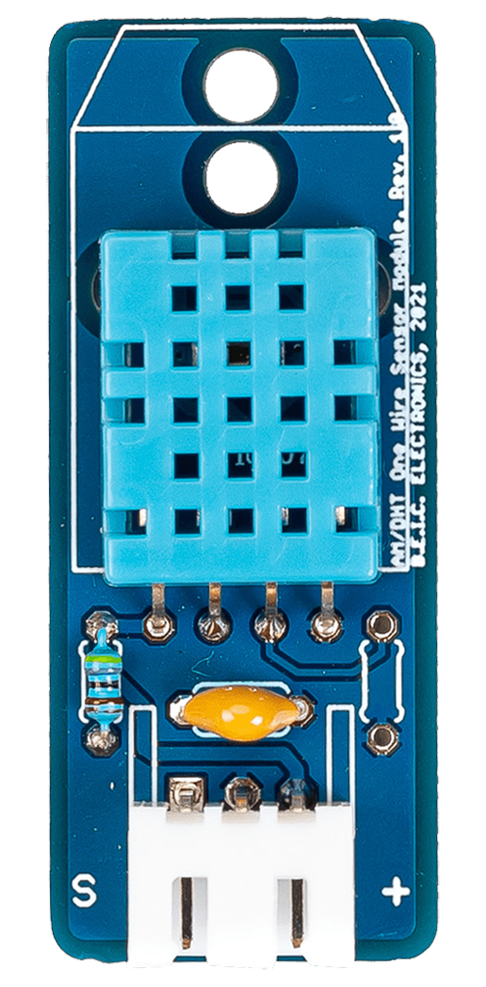

I2C Sensor Adapter

4

Digital Sensor Adapter

5

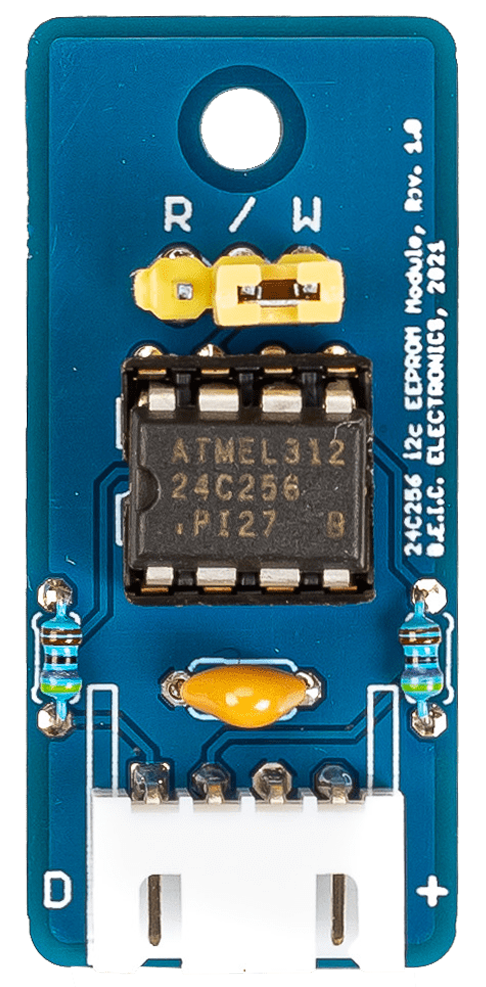

I2C EEPROM Module

6

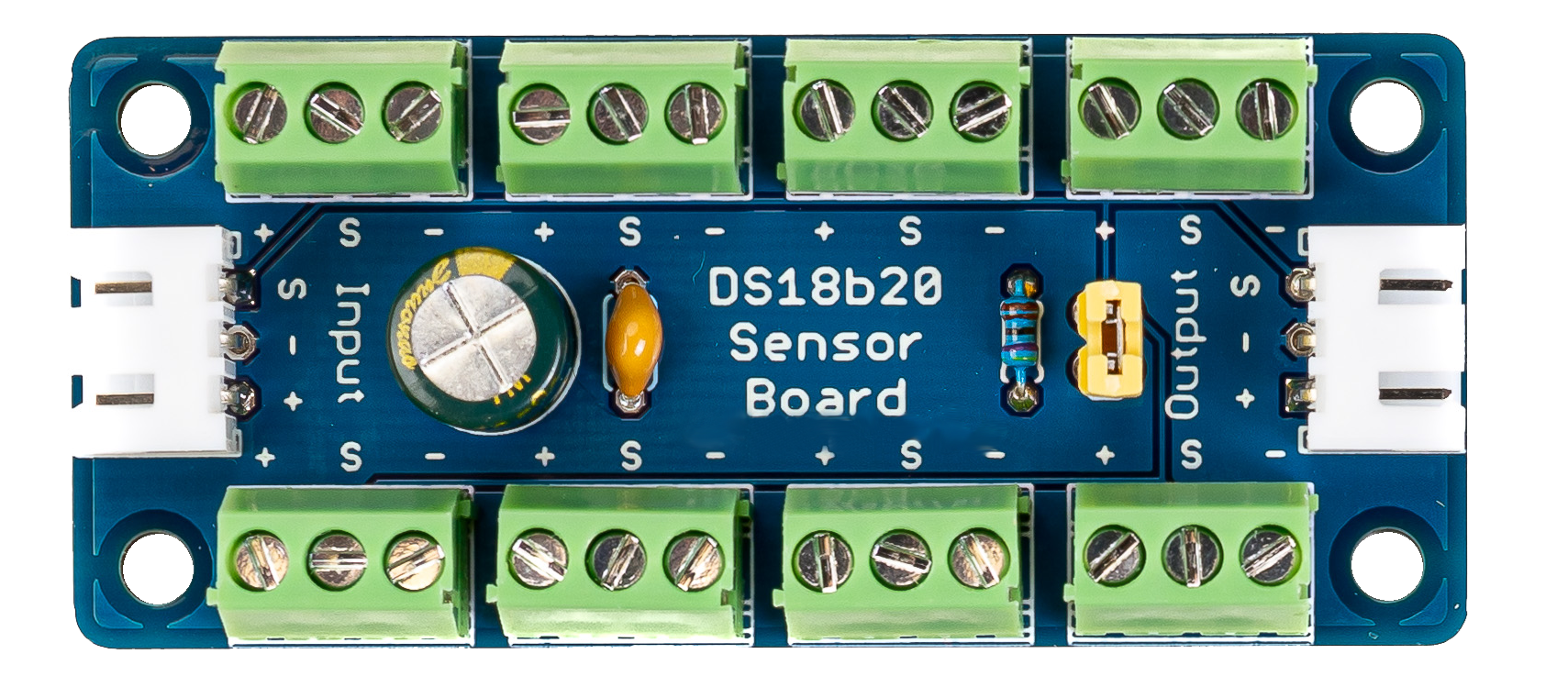

DS18b20 Sensor Module (8x Array)

7

Can be used with a combination of:

  • Raindrop, Soil Moisture, Liquid Water Level / Flow Sensor, Motion, Magnetic, Proximity Switch
  • SHT10, AM2315 Waterproof Probe
  • BMP085, BMP180, BMP280, BME280, SHT21, SHT30, SHT31, HTU21, Si7021, Si1145, SGP30
  • DHT12, AM2320, AM2321, AM2322, SHT20, AGS02MA
  • DHT11, DHT12, DHT22, MW33, AM2120, AM2320, AM2302
  • AT24C01A, AT24C02, AT24C04, AT24C08, AT24C016, AT24C32, AT24C64, AT24C128, AT24C256
  • DS18b20 Waterproof Probe or TO-92 Package (more Sensor Modules can be combined together)

and many other Sensor Modules, Extension Boards, and Accessories…

FAQs

A wide range of operating systems are supported like Windows, Linux and MacOS.

There are a lot of to choose from, like: Visual Studio, PlatformIO, Eclipse, Arduino IDE, Atmel Studio, B4R, Xcode and many more...

You can use any 5v USB to TTL UART 5-pin Programming Interface or Adapter with chips, like: CH340E, CH9340C, CP2102, CP2104, FT232RL with the Development Board.

Basically you can use any of them from the current Market if they meet the Development Board specifications (voltage and protocol wise).

You can connect the Development Board to the Network/Internet over dedicated LAN (Ethernet - W5100/W5500) or WiFi (ESP8266/ESP32) Shield.

We are using JST-XH 2.54mm 2, 3 and 4-pin Female to Female connector ribbon cables (10, 20, 30cm of length).
